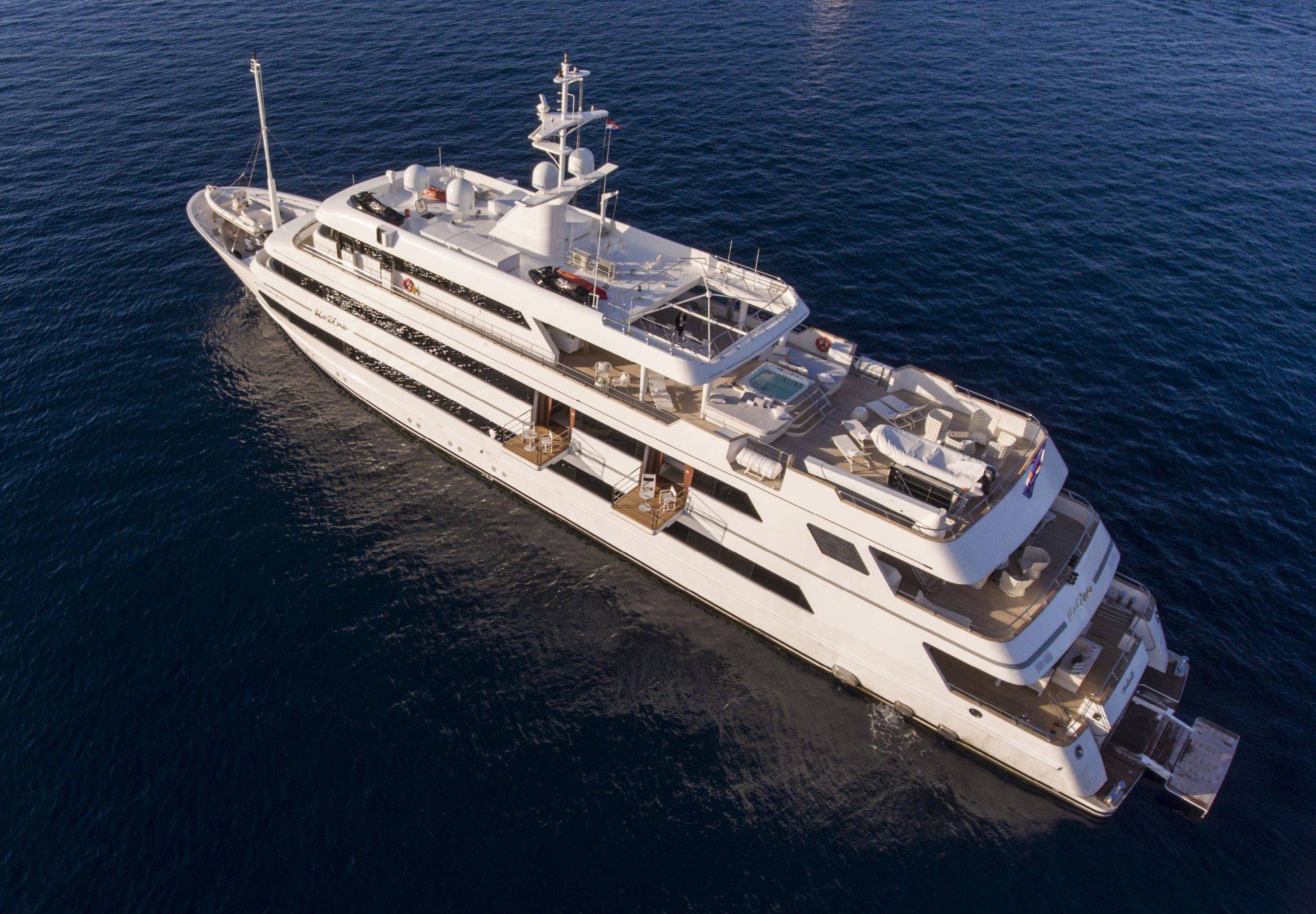

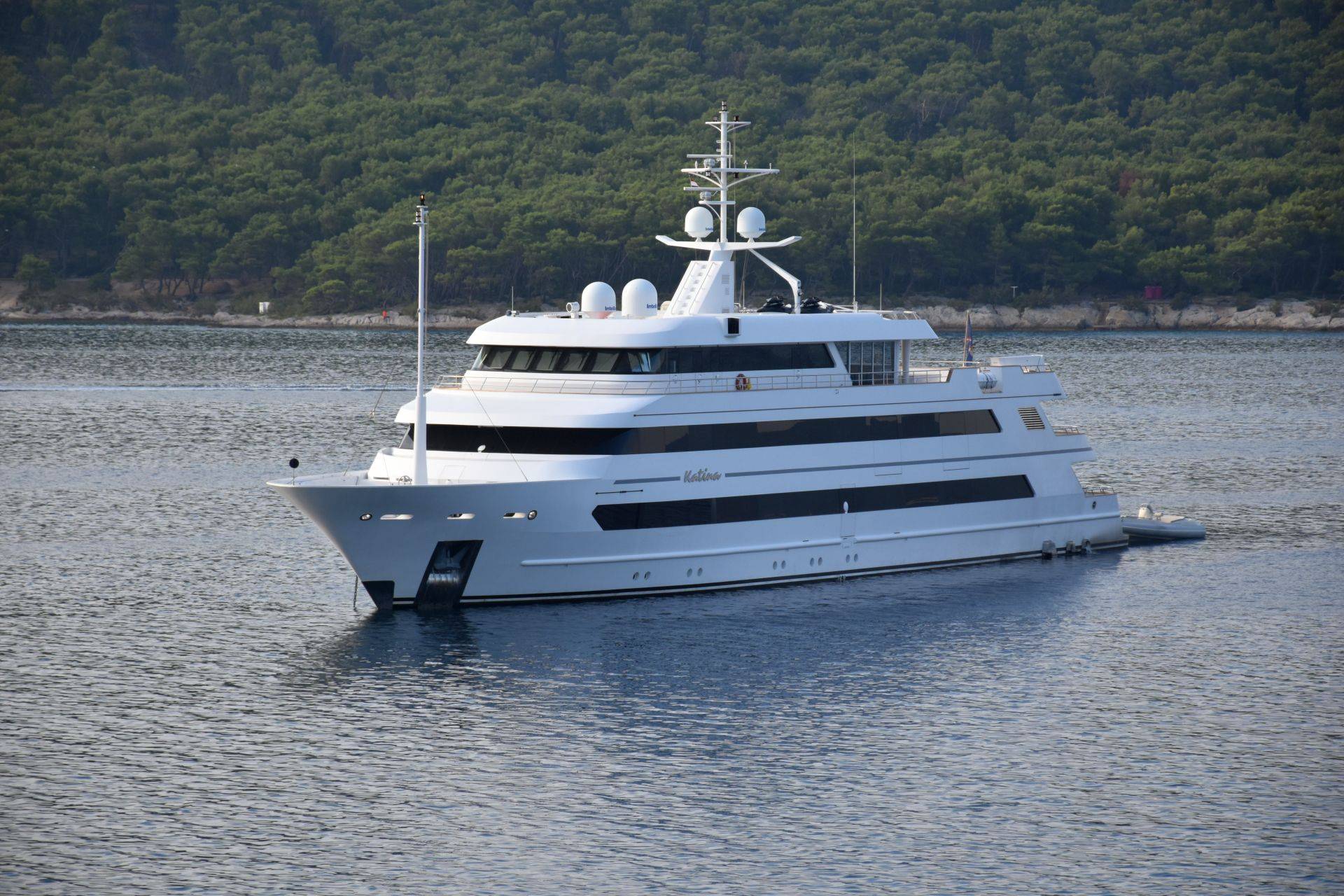

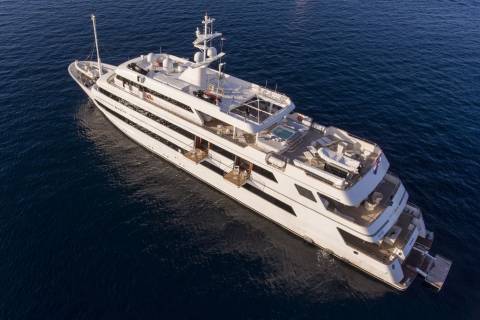

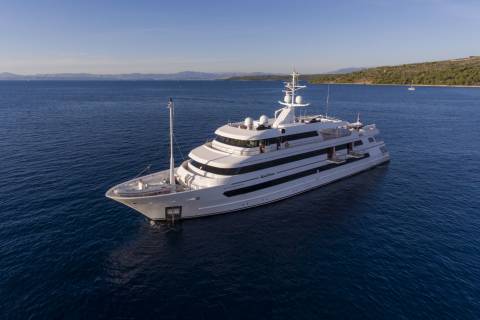

Luxury motor yacht 'Katina'

Katina was designed and built in the Shipyard of Special Facilities.

The 60-meter-long yacht can accommodate 12 passengers on its three impressively spacious passenger decks in six VIP cabins. Fifteen crew members will take care of all the passengers' needs, and the yacht is primarily intended for cruising in the Mediterranean and Caribbean. However, it is also classified for ocean navigation according to the certificate of the Croatian Shipping Registry and the Marshall Islands yacht code.

Two pairs of top zero speed stabilizers will ensure comfortable travel and reduction of rolling while the yacht is moored, while tanks (fuel and water) and provisions storage capacity will provide its autonomy for 4000 NM. The galley capacity makes it possible to prepare meals for up to 50 persons.

  • Length over all               60,00 m
  • Breadth, moulded          10,68 m
  • Depth                               4,50 m
  • Draught                            3,10 m
  • Deadweight                  220 t
  • Main engine                 CUMMINS
  • Engine type                  KTA 38 – M2
  • Rated output                   2 x 1007 kW at 1900 rev/min.
  • Passenger capacity        12 persons
  • Cabins                              6 two bedded VIP cabins
  • Crew                               15 persons
  • Speed                             13,7 knots
  • Classification society      Croatian Register of Shipping Rules

The hull and superstructure are made of steel, and the wheelhouse is made of aluminum alloy. Two propulsion engines with a power of 1000 kW will enable it to sail at a speed higher than 14 knots. Propulsion is controlled remotely from the wheelhouse and with an additional portable Plug&Play console.

Two pairs of top zero-speed stabilizers will ensure comfortable travel and a reduction in rolling while the yacht is moored. The tanks (fuel and water) and provisions storage capacity will provide its autonomy for 4000 NM. The galley capacity makes it possible to prepare meals for up to 50 people.

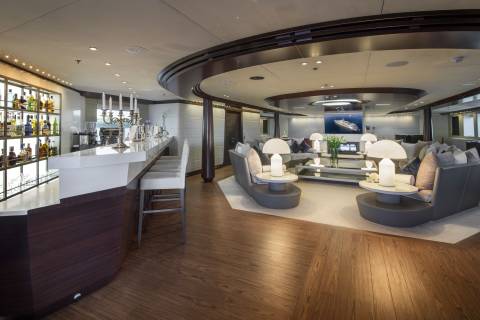

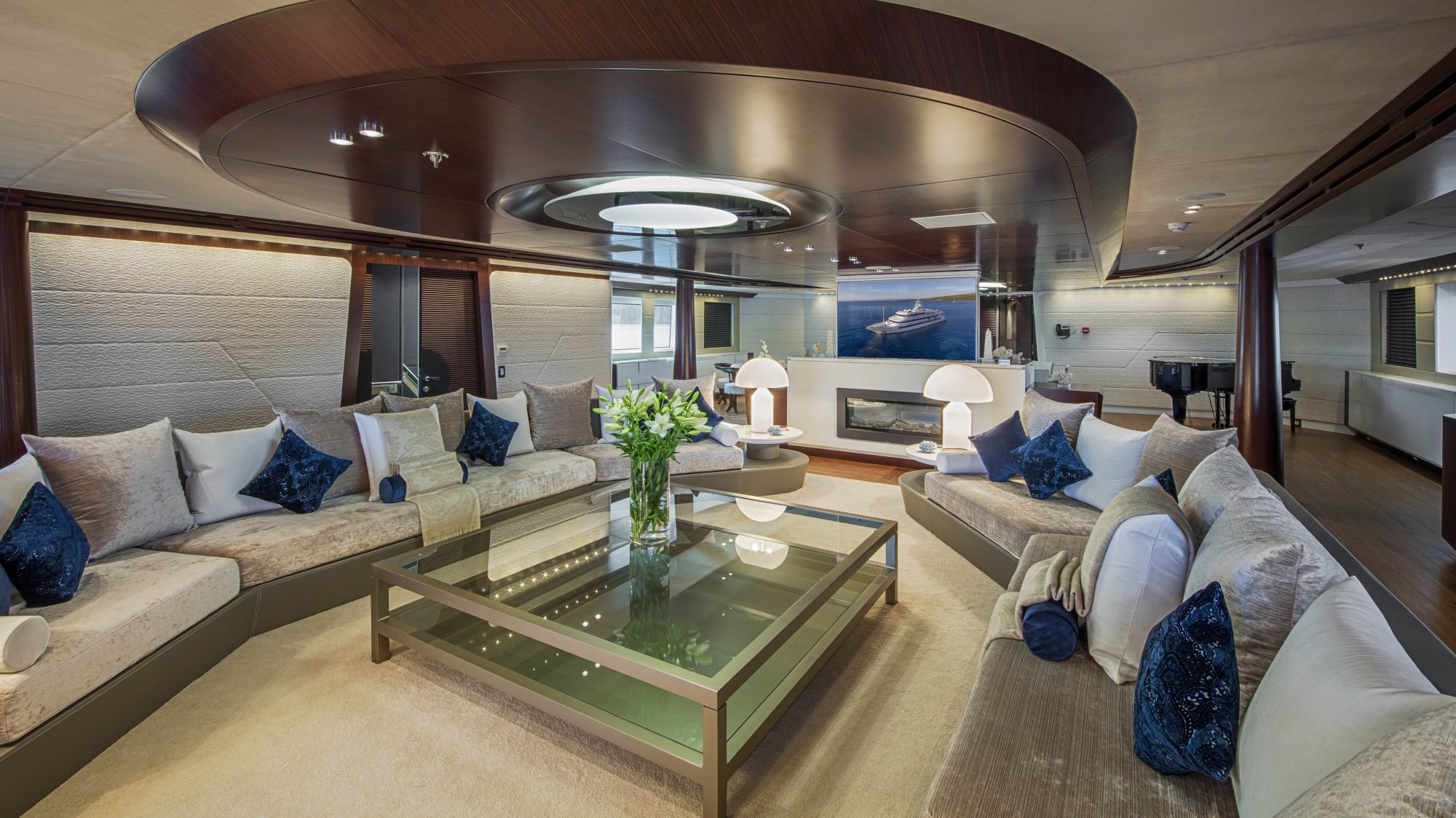

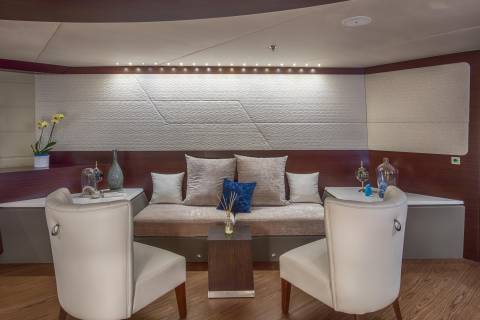

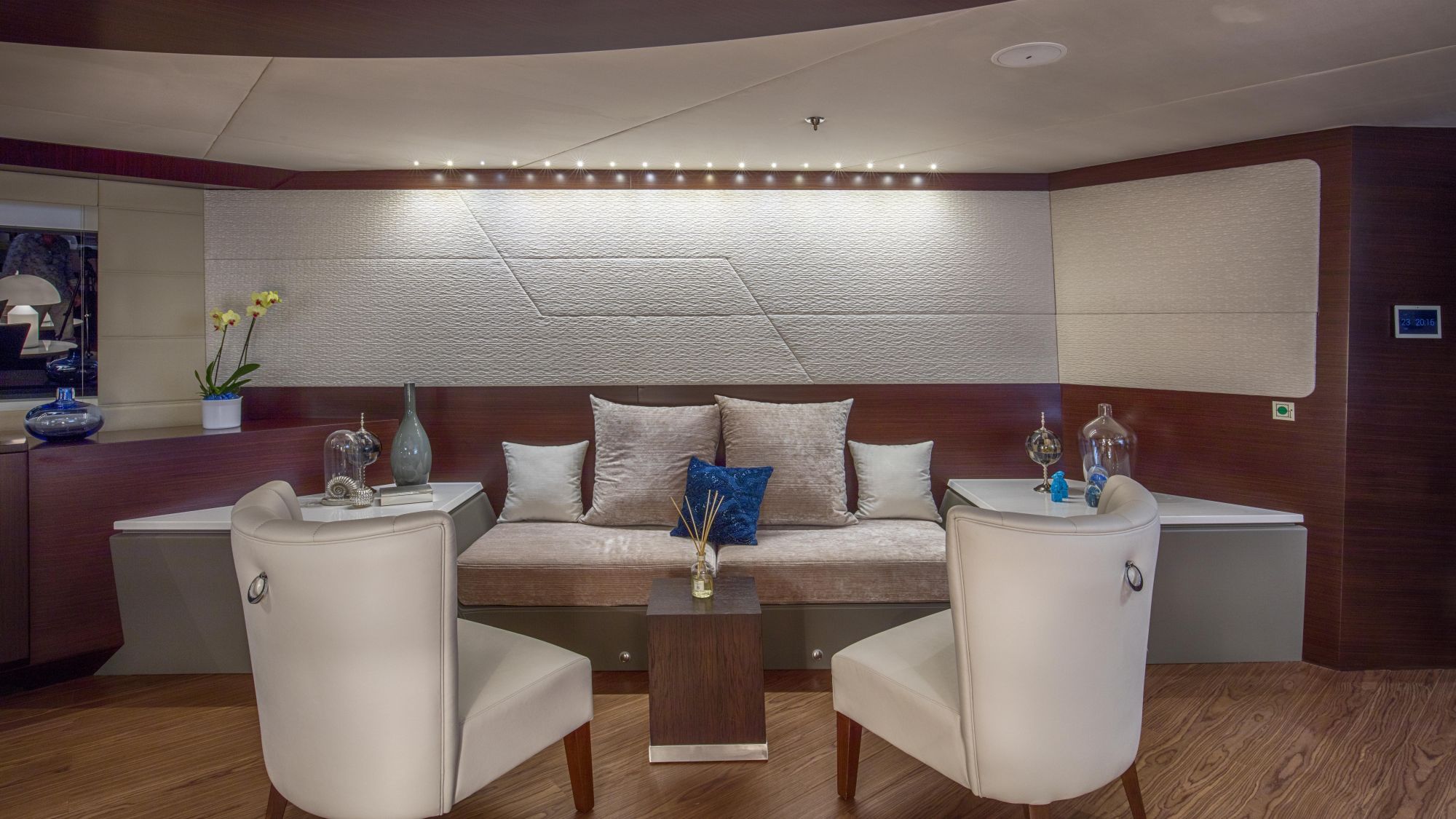

Six luxury-fitted VIP cabins are located on the upper deck, and the spacious salon and meeting rooms could accommodate up to 35 people for business meetings, presentations, or parties at the same time.

The entire yacht is covered with an audio-video entertainment system and an Internet network. All three decks are connected with the passengers' lift, and a special lift is used for taking the food from the galley to the salon. Underwater lights and the lighted name of the yacht create a special effect at night.

Among others, Katina is distinguished and placed in the foreground by the high coverage of the most modern equipment for water and adrenaline sports. These include windsurfing boards, water scooters, water parks, slides, kayaks, paddle boards, fly boards, bicycles, bananas, and other similar toys for towing. Additionally, they offer wake boards, water skis, diving equipment, equipment for sports fishing and big game, jetpacks, hoverboards, sea bobs, etc.

With the construction of this yacht, Brodosplit enters the world of yachts and does not change his concept, because the strength and virtue of Brodosplit is that he can design and build small, medium and large boats for different purposes.
